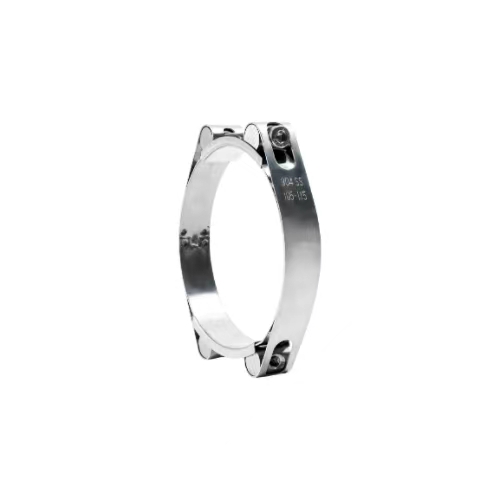

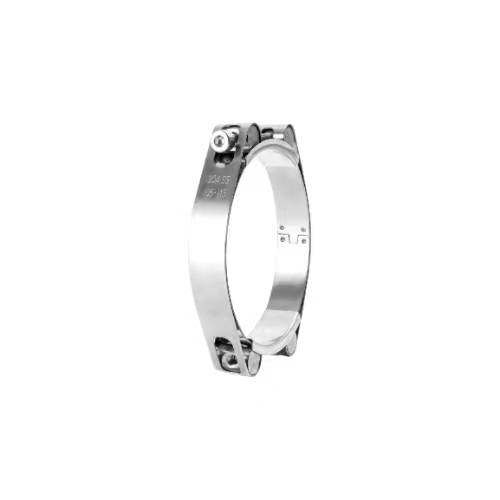

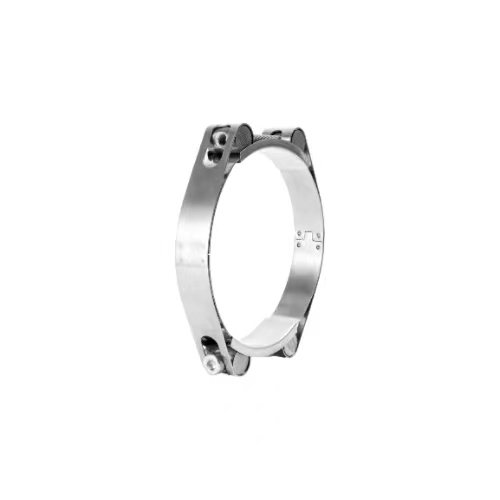

Superextra Double Bolt Clamp,an extra strong heavy duty clamp.
The Power clamp has 2 high strength 8.8 grade socket head bolts which allow for easy installation with an allen key on prefixed pipes & fittings, while the double bolts provide the clamp a higher clamping force.
The clamp has 2 pairs of solid trunnions ensuring torque is well distributed across the clamps double band resulting in higher breaking torque and excellent tensile strength.
The double bolt clamp has 2 bridges welded onto the clamp which provides extra strength and optimal hose protection.
Main Applications: Agriculture, drainage systems, irrigation, sludge suction. The W5 version- AISI 316 makes the clamp an ideal selection for marine and off shore applications.

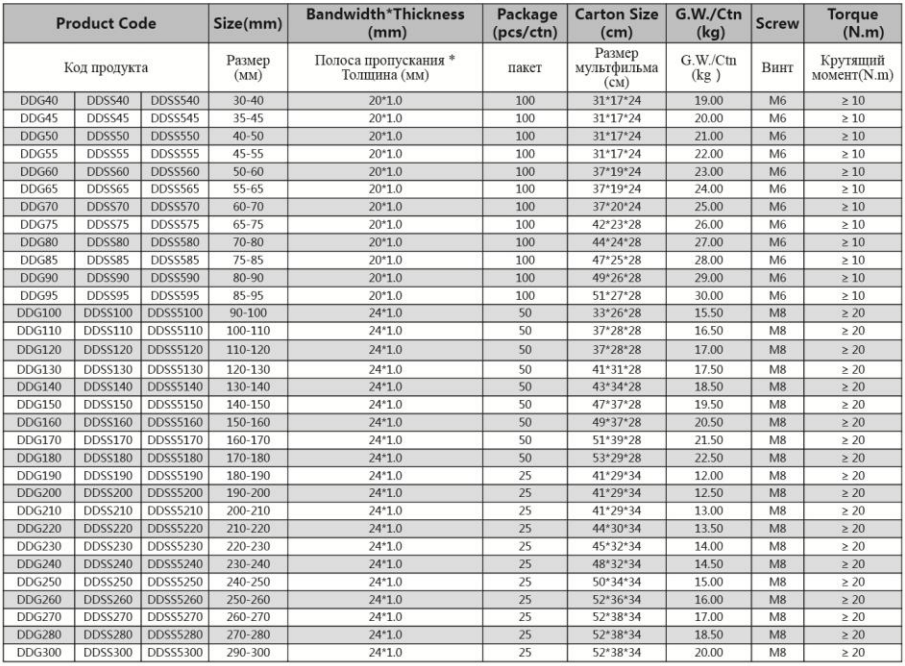

Bandwidth*Thickness: 20mm*1.0mm, 24mm*1.0mm
Bolt：M6*50，M8*60
