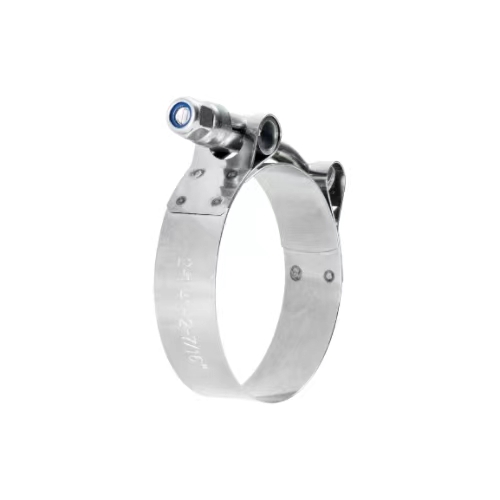

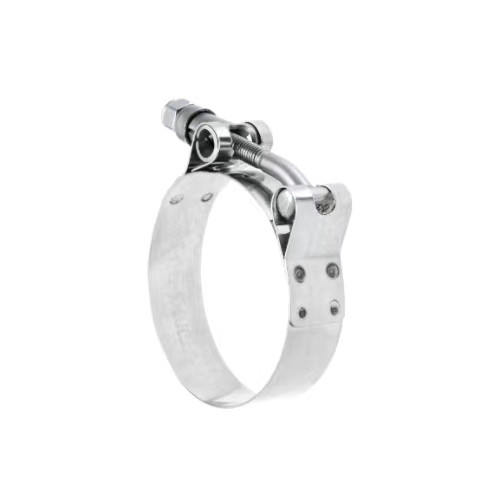

T bolt clamp
T-Bolt clamps provide uniform sealing pressure for a positive, reliable seal. Designed for use in high vibration and large diameter applications,
common used in heavy trucks, industrial machinery, off-road equipment, agricultural irrigation and machinery.
Features 3/4" or 7/8" wide stainless steel band, depending on size ordered, and welded construction for reliability.
This type of clamp conforms to SAE standard J1508 Type TB.
Band width： 3/4" and 7/8"
Band and housing material: 300 Series stainless steel
Screw material: zinc plated carbon steel or 300 series stainless steel
T bolt type: Straight bolt, bent bolt
Locknut: nylon insert locknut, all steel locknut (for high temperature condition)
