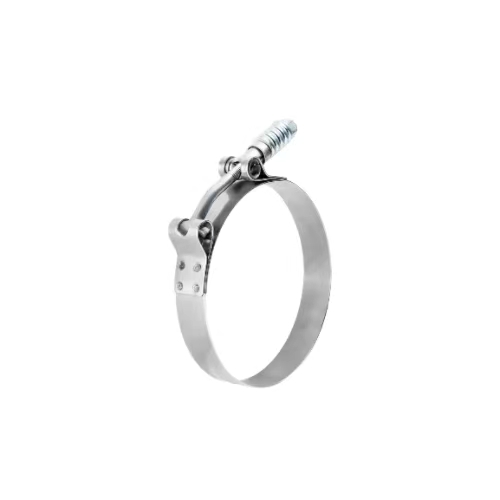

T bolt spring clamp

Spring Loaded T-Bolt clamps provide uniform sealing pressure for a positive, reliable seal where there is a need for constant tension performance.

Designed for use in high vibration and large diameter applications, common used in heavy trucks, industrial machinery, off-road equipment, agricultural irrigation and machinery.


Features a spring-loaded t-bolt assembly,  3/4" wide stainless steel band and welded construction for reliabilty.

Custom OEM designs can be developed for volume applications. Available in standard spring and heavy-duty spring.

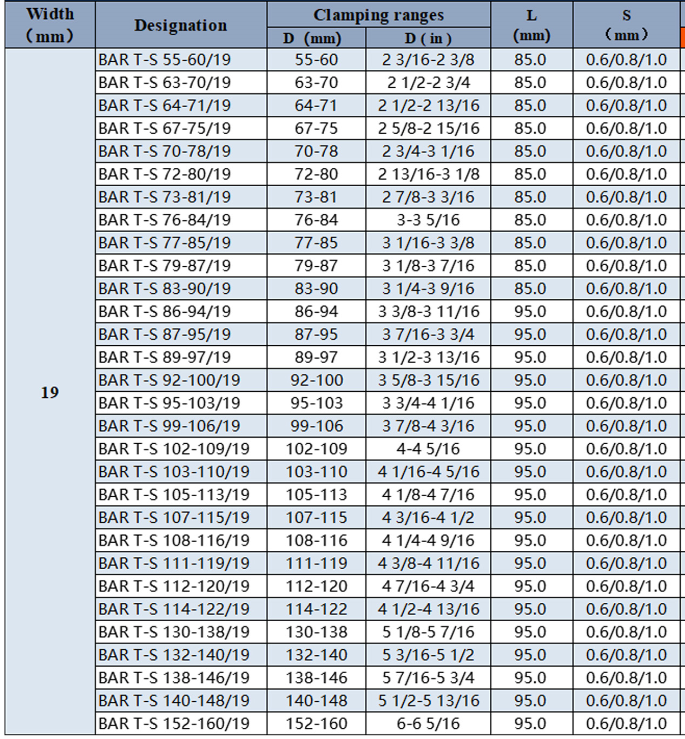

Band width:  3/4"
Band and housing material:  300 Series stainless steel
Screw and spring material:   zinc plated carbon steel or  300 Series stainless steel
Spring: standard spring and  heavy duty big spring
